Porous sponge bulk density and water absorption tester
Model: MZ-Y300, MZ-Y600, MZ-Y150
Standard Specification:
According to GB/T6343, GB/8810, GB/T2669, GB/T10799, GB/T1033, ASTM D 3574, JIS... and other standard specifications; adopt Archimedes principle, select solid general test according to the closed cell and open cell characteristics of the product Method and impregnation saturation method.
Application:
EPDM polymer, rigid foam, foam, sponge, EVA, PU foam, polyethylene foam, composite materials, packaging materials, cushioning materials, thermal insulation materials, protective materials, shoe materials, underwear, automobiles , Sports and sports equipment, furniture and woodworking enterprises, children's vehicles, polymers, shockproof materials... and other porous materials such as density, water absorption, porosity testing.
Features:
1. Digital display direct reading, without manual calculation, directly display parameters such as density, volume, and water absorption %.
2. Porous sponges, foam plastics and other similar products can be measured quickly.
3. Adopting Japanese NMB sensor, accurate measurement, easy operation, stable and durable.
4. It has the function of actual water temperature compensation, which can adapt to the temperature change of the test environment.
5. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.
6. Adopt ABS injection molding measuring table, corrosion-resistant and drop-proof, free replacement for life.
7. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data
8. Mayzun-Smart multi-group sample measurement system is optional, which can measure 10 groups of data at a time to realize high-efficiency measurement, print A4 standard data reports with one key, and store more than 100,000 groups of data.
MZ-Y150 function description:
1. Directly read the density, wet density, apparent density, apparent porosity, water absorption, open pore volume, sealed pore volume, and total porosity of porous materials such as foam, sponge and EVA.
2. Directly read the density and volume of dense materials such as rubber, plastic and pearl cotton.
3. Purchase a special pycnometer to directly read the true density of the raw material powder.
MZ-Y300/Y3000 function description:
1. Directly read the density, wet density, apparent density, apparent porosity, water absorption, open pore volume, sealed pore volume, and total porosity of porous materials such as foam, sponge and EVA.
2. Purchase a special pycnometer to directly read the true density of the raw material powder.
Technical parameters: (Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
Technical parameters:
(Note: A large range of large-scale density meters can be customized according to customer needs, and the maximum can be customized 6-30kg)
Brand | MAYZUM（Warranty for 3 years） | |||
Model | MZ-Y300/Y600 | MZ-Y150 | MZ-Y3000 | MAY-124/224/324SD |
Weight accuracy & Max load | 0.005g ; 300g/600g | 0.001g; 150g | 0.01g; 3000g | 0.0001g / 120g/220g |
Density Precision | 0.001 g/cm3 | 0.001 g/cm3 | 0.0001 g/cm3 | |
Measuring efficiency | Test 1 set of samples at a time | Test 10 set of samples at a time | ||
Density Range | 0.001~99.999g/cm3 | |||
Water absorption & porosity accuracy | 0.01% | |||
Principle | Archimedes principle of drainage | |||
Testing Time | About 5 seconds | |||
Function Mode | Function 1: Detection of density and water absorption of porous materials such as foam, sponge, EVA shoe material; Function 2: Density and volume of dense materials such as rubber plastic, EPE pearl cotton, foam plastic; Function 3: Detection of true density of powder. (Long press the "Switch" button to quickly switch the measurement mode) | |||

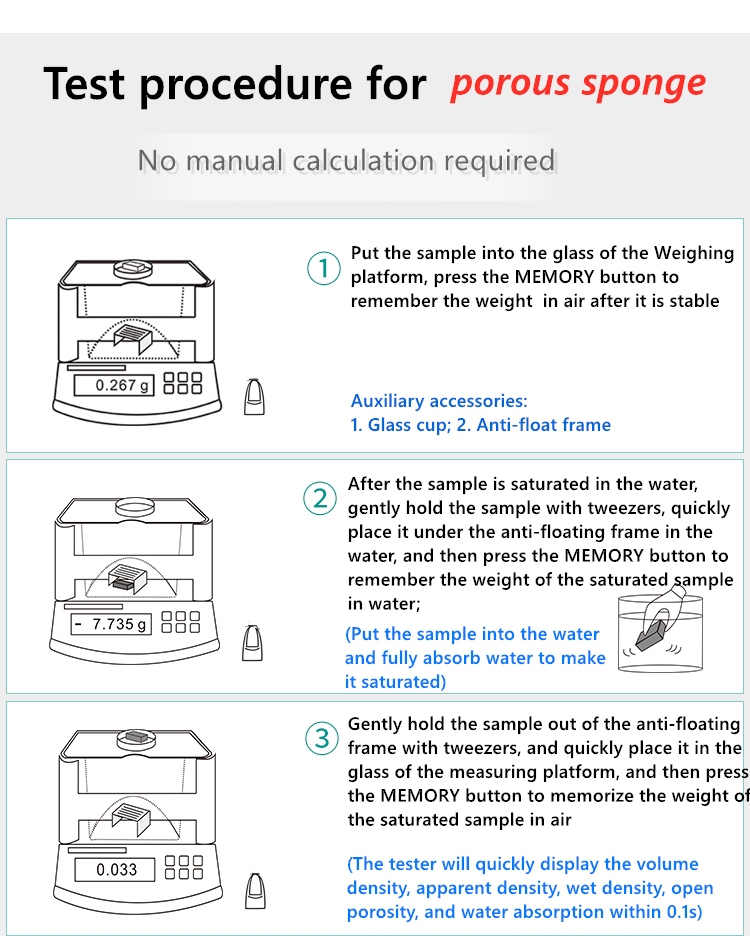

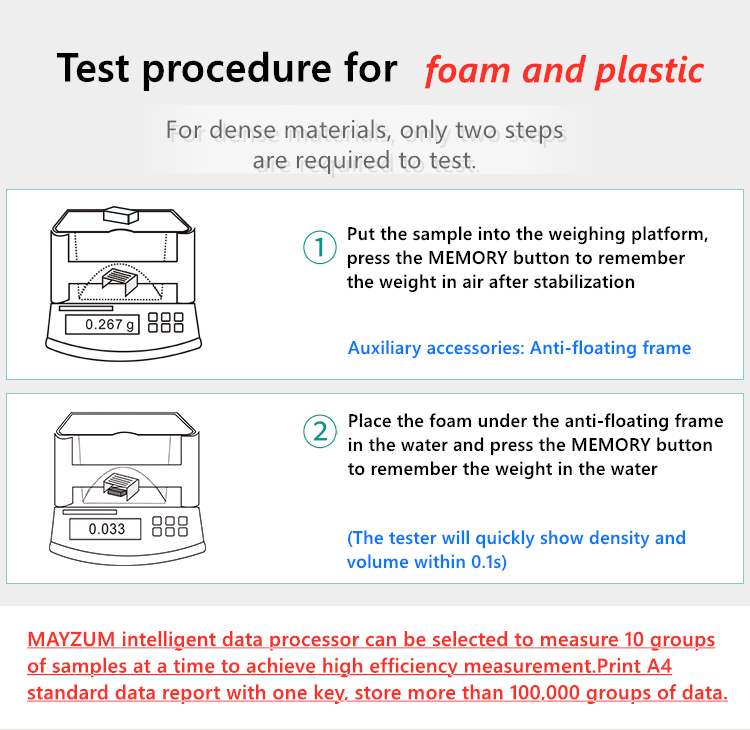

Testing Procedure | 1. Put it on the measuring table and press the save button to memorize the weight in the dry air; 2. (Vacuum method, boiling method, wax sealing method, etc.) After processing, the sample is placed on the measuring table, and the saturated empty weight is stored according to the memory; 3. After the saturation treatment, the sample is placed on the hanging basket in the water, and the density, volume, water absorption%, and porosity% are directly displayed by pressing the save button. Remarks: Dense materials only need to measure the weight in the air and the weight in water in two steps. | |||
Results Displayed | Bulk density, wet density, apparent density, apparent porosity, water absorption, open pore volume, sealed pore volume, total porosity, true density | |||
Parameter Setting | Water temperature setting, medium liquid density setting | |||
Calibration | One-key automatic Calibration | |||

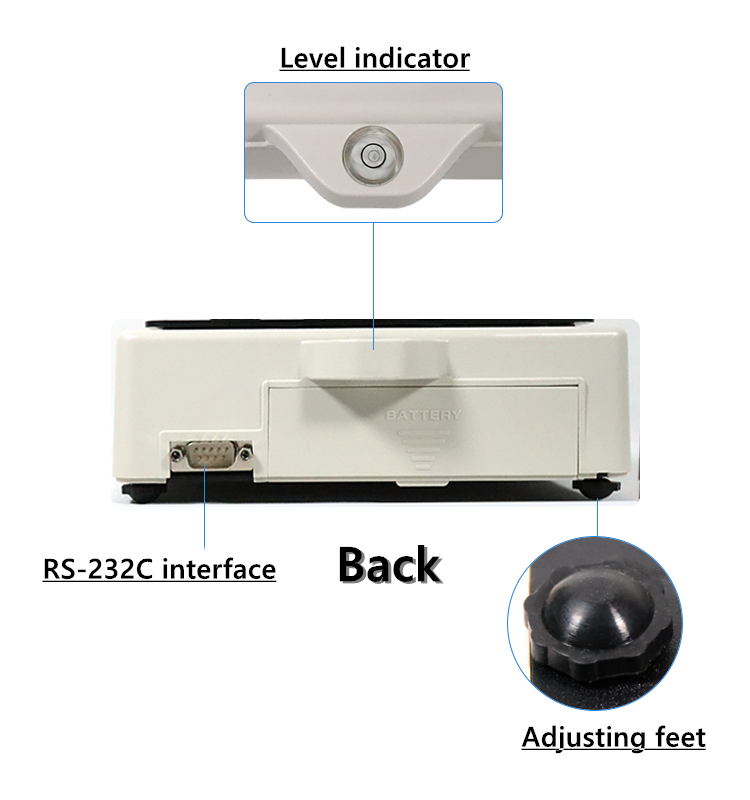

Output Method | RS-232C standard communication interface, convenient for test data output and printing | |||
Temperature and Humidity Range | Allowable ambient temperature: 0~45℃; Allowable relative humidity: within 80% | |||
Power Supply | AC~220V / 50HZ（Export power supply needs to be customized, please indicate before ordering） | |||
Tank Size | 150*100*90mm | |||

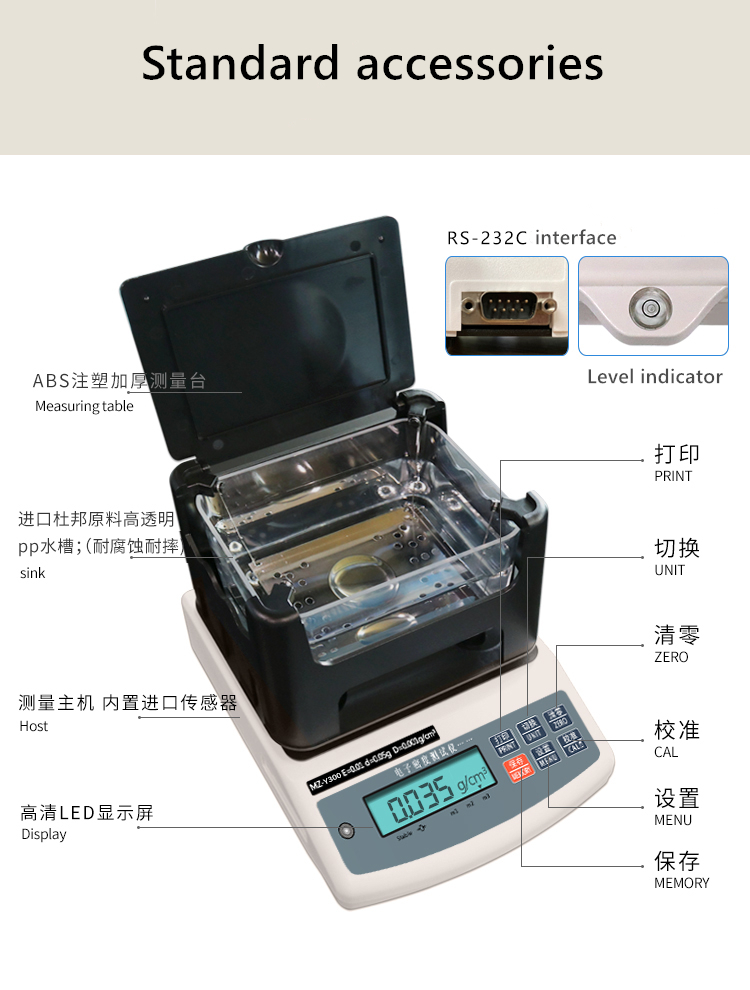

Standard accessories | ①Host computer ②Sink ③Measuring table ④Tweezers ⑤Bubble dropper ⑥Weight ⑦Power transformer ⑧Particle measuring accessories ⑨Floating material measuring accessories | |||
Optional accessories | MZ-P1 printer MAYZUM-Smart v 6.0 Porous material density water absorption porosity measurement system | |||
Other Parameters | Outer packing size: 395*195*330mm Tester size: 210*195*185mm Net weight : 3.5kg Gross weight: 4.5kg HS code : 90160090 | |||

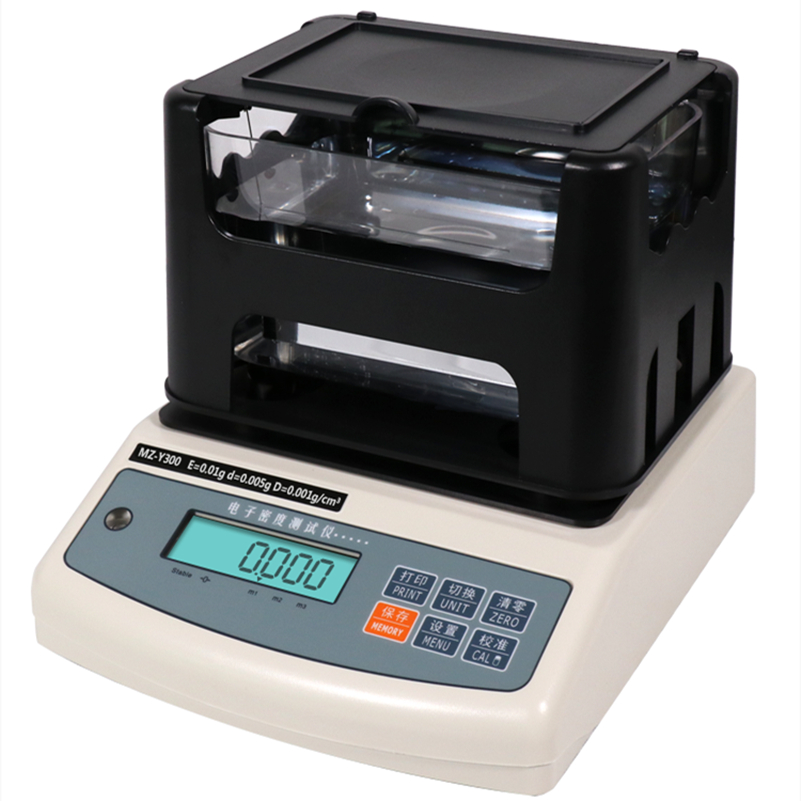

MZ-Y300/Y600 Accuracy:0.001g/cm³

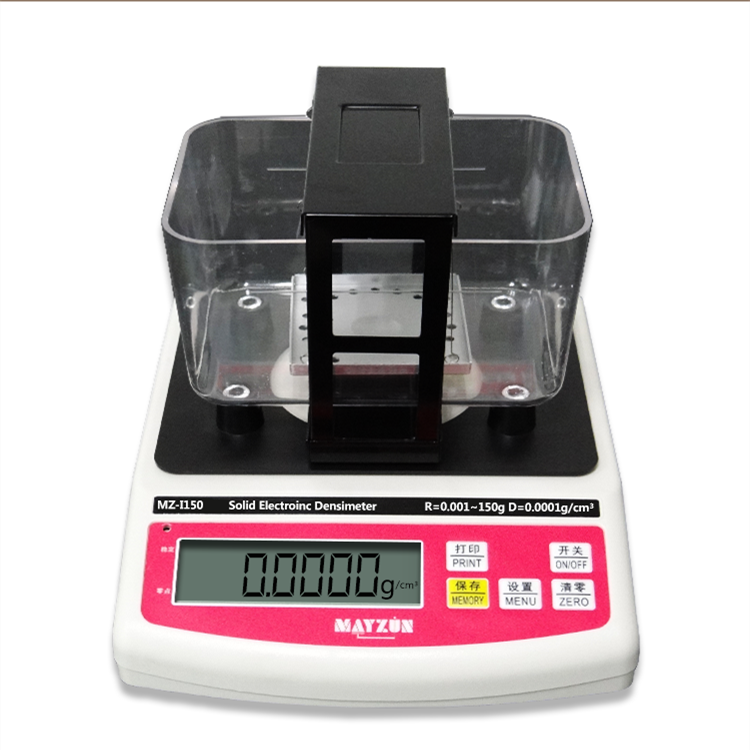

| MZ-Y150（Equipped with windproof and dustproof cover） Accuracy:0.0001g/cm³ |
Patented product: Intelligent MAY-124/224/324SD Accuracy:0.0001g/cm³
| MZ-Y3000（Size can be customized on demand） Accuracy: 0.001g/cm³
|
Remarks: For small parts (parts weighing less than 5g), please select the high-precision intelligent MAY-ENTRIS120 series
Preview of intelligent MAY-SD series measuring system:
