Intelligent Automatic Three-station Liquid Online Concentration Meter MAY-2001-3

Intelligent Automatic Three-station Liquid Online Concentration Meter


MAY-2001-3


Special reminder:

Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment.

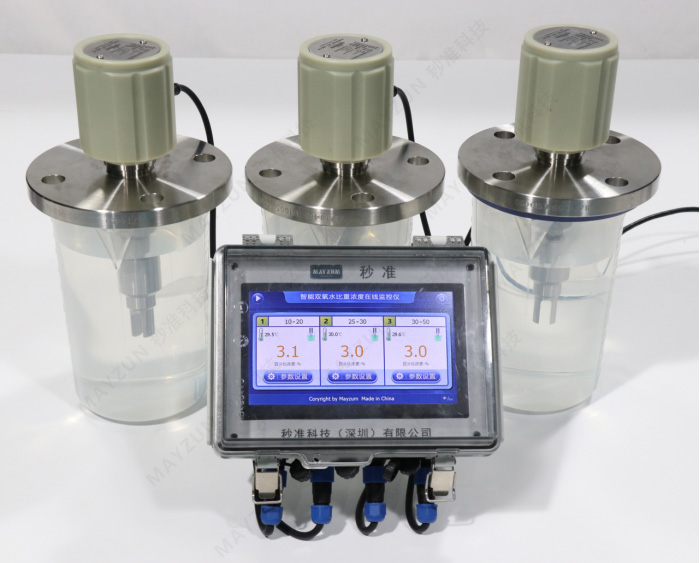

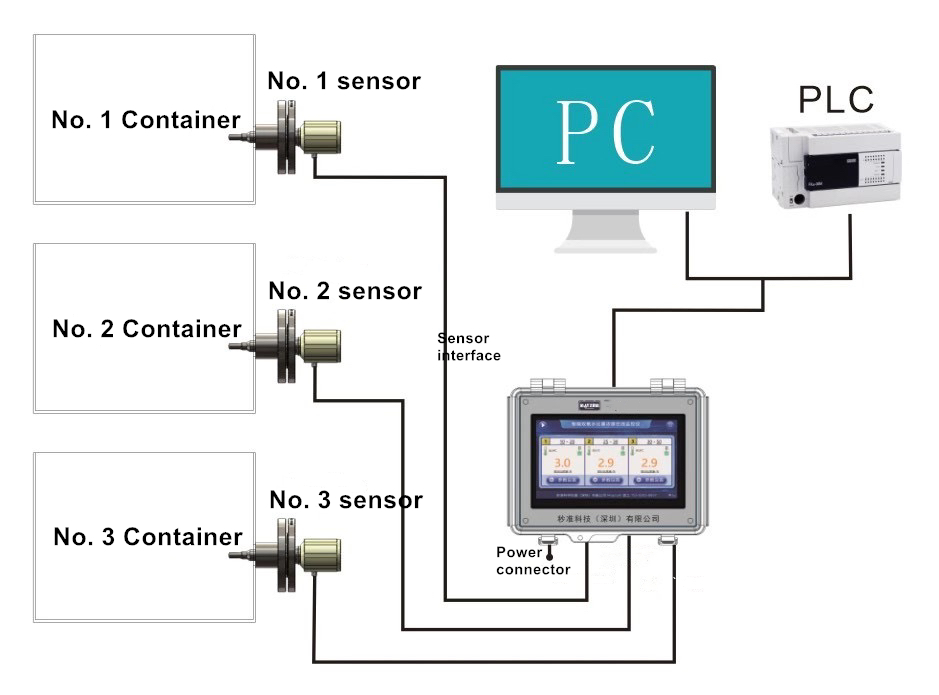

 The main composition of the tester (the appearance of this picture is for reference only,

and the customized style shall prevail at the time of shipment)

Working principle


U-shaped tuning forks produce different vibration frequencies in liquid media with different specific gravity concentrations. The vibration frequency is detected by a piezoelectric crystal, passed through a phase-shifting and amplification circuit, and then converted into specific gravity concentration digital signal by a microprocessor. Usually, the specific gravity and concentration of liquids with different concentrations will show a certain mathematical relationship. According to the Lagrange interpolation algorithm (y=E1x3+E2x2+E3x+E4, where x is the specific gravity and y is the percentage concentration, E1, E2, E3, and E4 are concentration conversion coefficients) to convert the corresponding concentration value under a specific gravity value.




Function

In the reaction kettle, sealed barrel, open slot, pipeline and other occasions, the sensor is fixed by means of chuck, thread, flange, etc., online monitoring of the relative density, specific gravity concentration, Baume degree, temperature of various chemical liquids.





Technical parameters:


Measuring range

Density:0.0000 ~ 2.0000

Resolution:

Density:0.0001g/cm³

Concentration:0.0 ~ 100.0%

Concentration:0.1%

Baume: 0-100° BEBaume degree: 0.01° Be

Temperature: 0.0 ~ 100.0℃

Temperature: 0.1℃

Measurement error:

Density:±0.005g/cm³

Reading frequency

2 times/second

Concentration:±1%

Ambient temperature:

0.0 ~ 100.0℃

Baume: ±0.5° BeMeasurement method:Partially immerse the sensor in the liquid for measurement

Temperature: about ±5℃ (due to heat conduction)

Maximum flow rate:

100m/min

Cable length

Within 10 meters

Protection grade:

 Sensor liquid measurement position IP67

Sensor material:

Hastel alloy

Installation method:

Install on the pipe with DN50 flange

Probe length:

77 mm(the part inserted into the liquid, the length can be customized)

Output signal:

3 groups of concentration upper and lower limit switch control signals, RS485 Modbus RTU digital quantity

Power supply:

DC 24V、2A

Configuration:

Display controller, sensor, circulating measurement slot

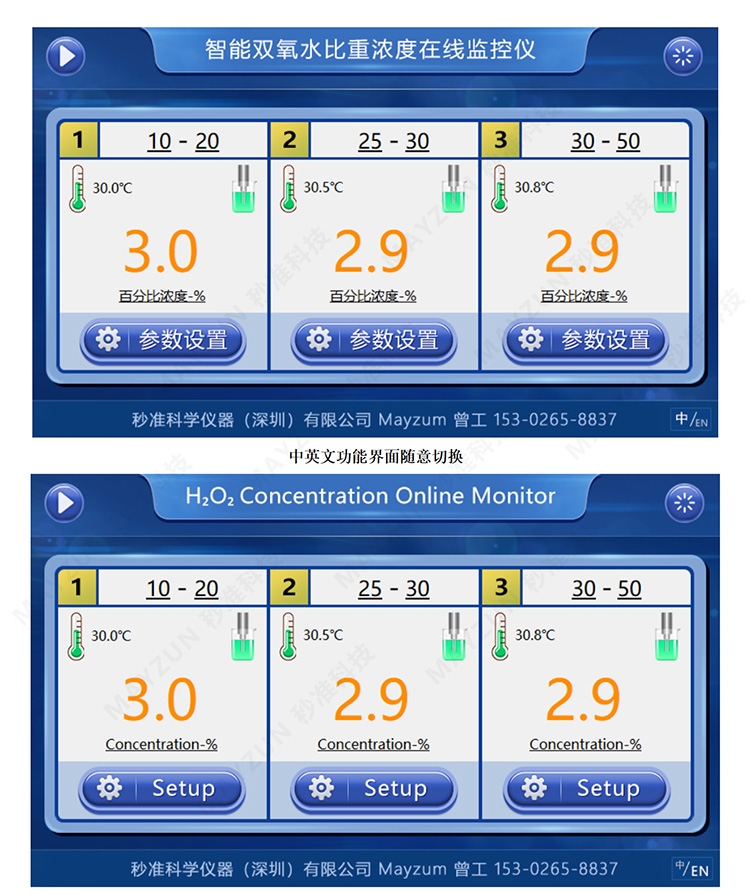

Software interface (freely switch between Chinese and English)
