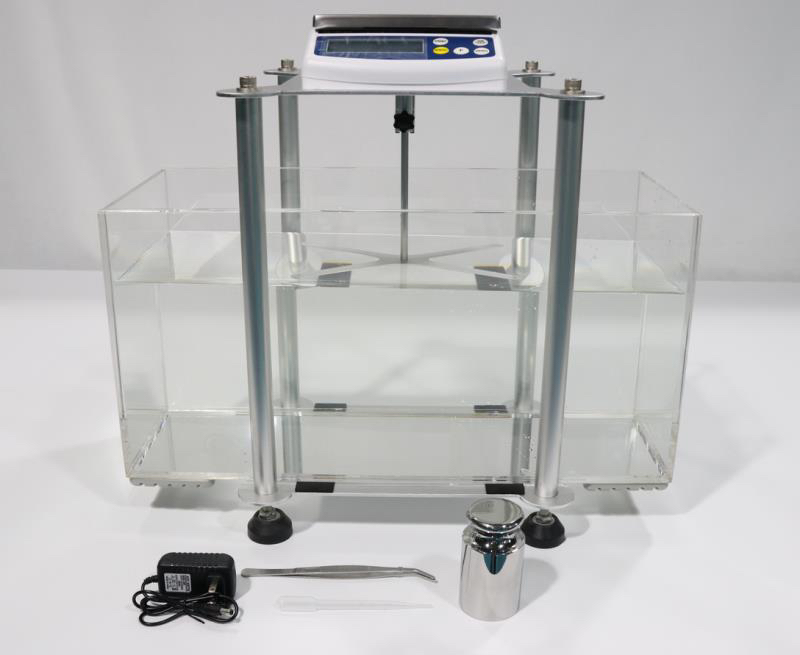

Density Water Absorption Rate Tester For Integral Shoe Material / Helmet / Super Buoyancy Material
Application:
Ultra-large buoyancy material solid apparent density volume tester adopts Archimedes buoyancy method to quickly various irregular solid density and volume, suitable for ultra-large buoyancy materials, low-density materials, shoe materials, EPDM, TPR, EVA, PVC TPR , RB, secondary EVA/MD sole, EVA foam shoe material, apparent density and volume test.
Principle:
According to ASTMD297-93, D792-00, D618, D891, GB/T1033, JISK6530, ISO2781 standards. Adopt Archimedes' principle of water displacement method.
Features:
1. Digital display direct reading, without manual calculation, direct display of density and volume.
2. Any solid material can be measured quickly.
3. The Japanese NMB sensor is used for accurate measurement, easy operation, stable and durable.
4. It has the function of actual water temperature compensation, which can adapt to changes in the test environment.
5. The density of the medium can be set, water is used as the medium, and other liquid mediums can also be used.
6. Adopting one-piece high-capacity measuring platform, corrosion-resistant and drop-proof, free replacement for life.
7. MAYZUM-Smart multi-sample measurement system is optional, which can measure 10 sets of data at a time to achieve high-efficiency measurement. One-key printing of A4 standard data reports can store more than 100,000 sets of data.
8. With RS-232C communication interface, it is convenient to connect PC and printer. MZ-P1 printer can be selected to print measurement data
Functions:
1. The sample can be easily immersed in the liquid by using the rotating descending equipment.
2. The immersion depth of the sample liquid surface can be adjusted arbitrarily. Suitable for samples with irregular sizes.
3. The sample after the test can be easily taken out.
Specification:
| Model | MZ-Y3000 | MZ-Y6000 |
| Sample weight range | 0.01g-3000g | 0.05g-6000g |
| Sample density accuracy | 0.001 g/cm3 | 0.001 g/cm3 |
| Test type | Apparent density and volume of super buoyant material | |
| Testing time | 3 seconds | |
| Standard interface | Standard accessories: specific gravity tester, lifting frame. Anti-floating auxiliary frame | |
Remarks: The size can be customized according to the shape of the user's material, without additional cost, and the construction period is 5 days.
