Online Degreasing Agent Cleaning Solution Concentration Tester
Special reminder:
Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment.
Function

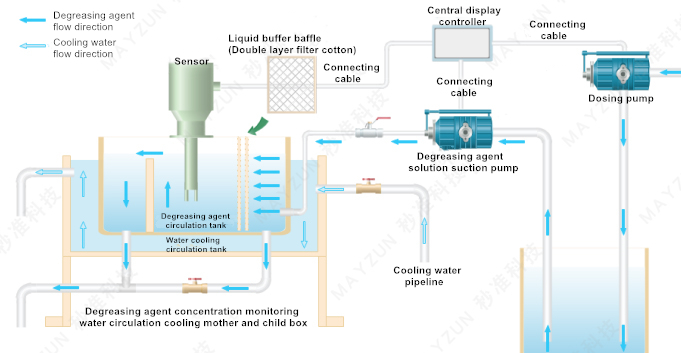

Online monitoring of the concentration of degreasing agent (cutting oil used to clean the surface of the CNC machined mobile phone housing), when the concentration drops to the lower limit, start the dosing pump to replenish the degreasing agent, start the agitator at the same time, and finally use the concentration in the working tank Reach the set standard value.
Specifications
Brand | Mayzum | |
Model | MAY-2001 (intelligent type, tuning fork method)/ MAY-3001 (intelligent type, refraction method) | MAY-1001 (buoyancy method) |
Measuring range | Liquid level: 0-1500mm | Liquid level: 0-1500mm |
Specific gravity: 0~2.2g/cm³ | Specific gravity: 0~2.2g/cm³ | |
Concentration: 0.1 ~ 100.0% | Concentration: 0.1 ~ 100.0% | |
Measurement accuracy | Liquid level: 0.1mm | Liquid level: 0.1mm |
Specific gravity: 0.0001g/cm³ | Specific gravity: 0.001g/cm³ | |
Concentration:0.01 % | Concentration: 0.1 % | |
Measurement error | Liquid level: ±0.1mm | Liquid level: ±0.1mm |
Specific gravity: ±0.005g/cm³ | Specific gravity: ±0.01g/cm³ | |
Concentration: ±0.5~1% | Concentration: ±1% | |
Reading frequency | 2 times/S (0.5 second reading) | 2 times/S (0.5 second reading) |
Protection level | Sensor liquid measuring part IP67 | NO |
Sensor explosion-proof grade | Ex d IIC T6Gb | NO |
Sensor material | Hastelloy (more corrosion resistant than 316L stainless steel) | 304 stainless steel |
Medium temperature | 0.0 ~ 120.0℃ | 0.0 ~ 160.0℃ |
Ambient temperature | -40~85℃ | |
Allowable relative humidity | Within 80% | |
Output signal | The default RS232, RS485 Modbus RTU digital quantity, switch quantity, 4~20mA and other outputs can be selected | |
Power supply | DC 24V，2A | |
Standard configuration | Display controller, measuring sensor | |
Other functions | Can be customized according to user needs | |
