Intelligent Online Liquid Hydrogen Peroxide Concentration Meter MAY-2001-H2O2
Special reminder:
Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment. Please consult the sales staff for details. (E-mail: qlyiqi@126.com Mob/Whatsapp: 86-13928470327)
Product introduction
MAY-2001 tuning fork online density meter has been widely used in industrial field, it is not afraid of hanging, not afraid of the impact, high sensitivity. It using tuning fork "resonance" principle, piezoelectric element is electrically driven by vibration, only probe rod surrounded by material surrounded by the amplitude of vibration is sharply reduced, resulting in switching action.

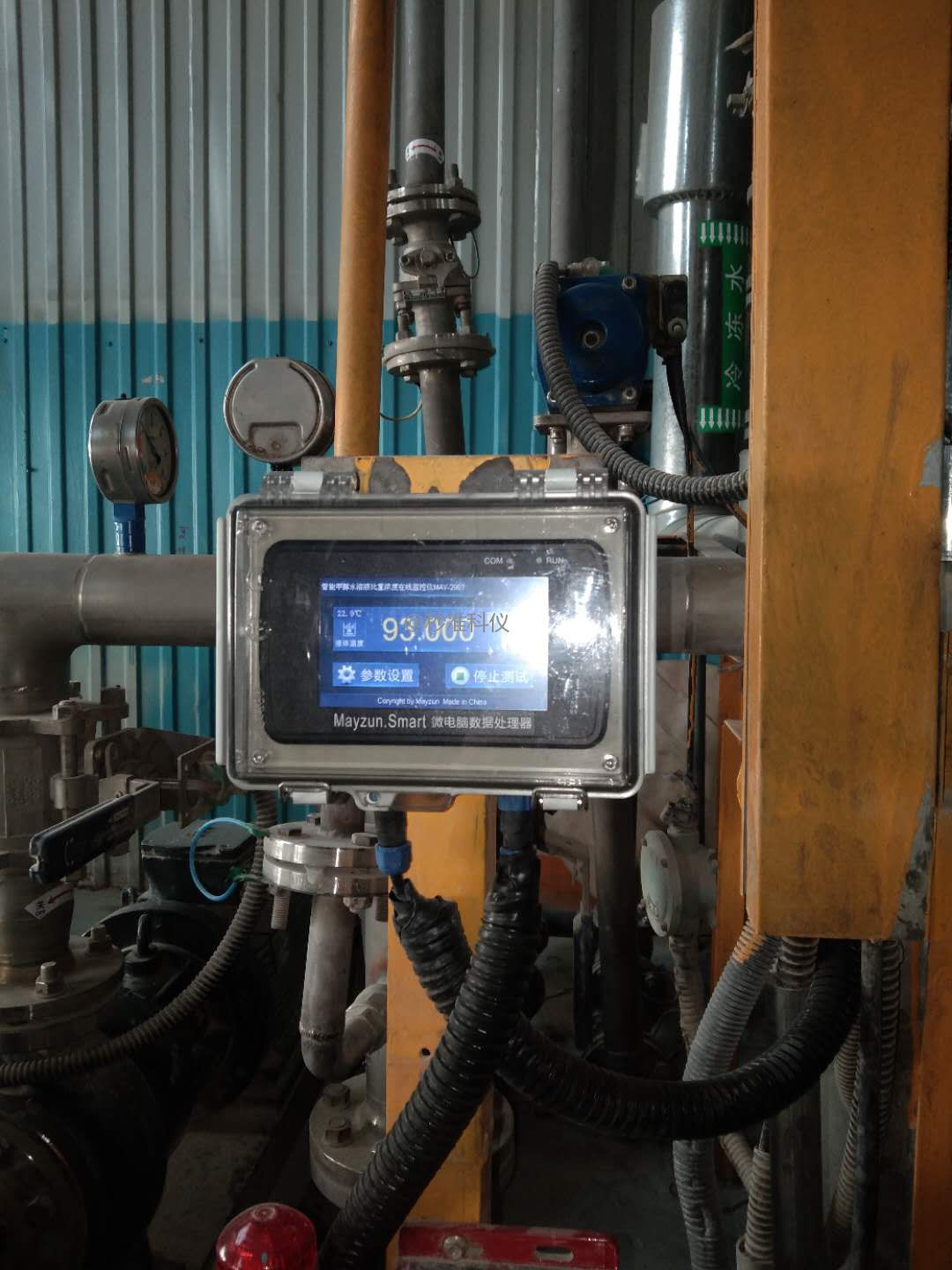

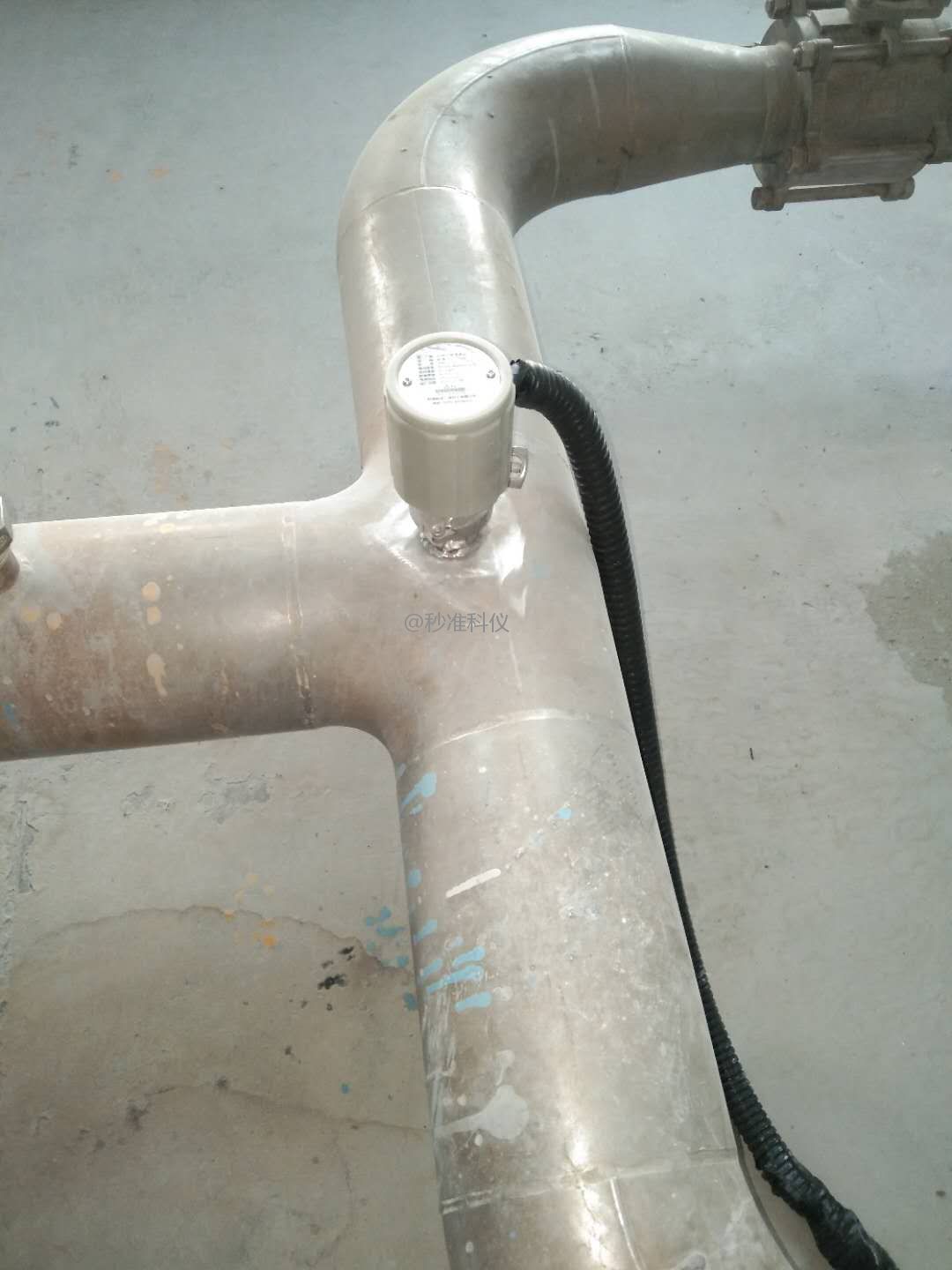

The hydrogen peroxide online concentration meter adopts pipeline installation method and is installed at the outlet of extraction tower and distillation tower. It detects the concentration of H2O2 aqueous solution online, and transmits the concentration value to DCS remotely to help improve the extraction efficiency and control the concentration of the finished product.
Operational principle
MAY-2001 Miniature tuning fork online density meter is designed according to the theory of resonance. The vibration components is similar to two teeth of the tuning fork, the fork body vibration because of a piezoelectric crystal was located in the root of tooth, vibration frequency is detected by a piezoelectric crystal , through shifting the phase and amplifying circuit, the fork body is stable in the natural resonant frequency.
When the liquid flows through the fork body, vibration changes, caused the change of resonant frequency, thus through electronic processing unit to calculate accurate density value.
Technical characteristics
MAY-2001 Miniature tuning fork online density meter with based on microprocessor electronic switching device, signal processing, calculation and diagnosis function in a body. Besides with convincing accuracy of measurement and reliability. It can direct communicate with PC through RS485 or Hart interface, under the software environment for professional users, the user can direct set the online node configuration, fault diagnosis and data records. When measuring density and temperature, it also can calculate the basic density.°API, brix and concentration ratio, mass ratio, volume fraction and so on.

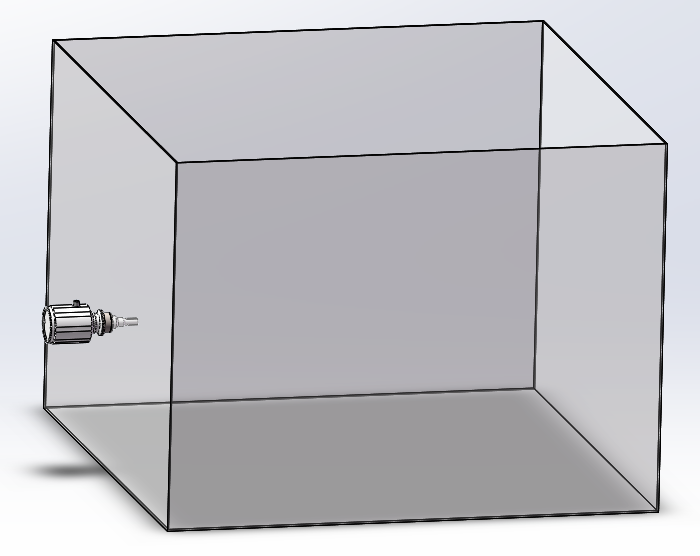

MAY-2001 Miniature tuning fork online density meter can be installed directly on the tank and pipeline. Measuring the fluid viscosity of this density can be as high as 20000 cP which is one of the most striking aspects of its superior to other similar products, and it also has a very high cost performance.
Product features
1. Strong adaptability: the different electrical parameters, turbulence, a small amount of air bubbles, vibration, solids content, coating, liquid properties of the test material are not affect the measurement.
2. Avoid maintenance: due to fork density (concentration) transmitter detection process is completed by the electronic circuit and no moving parts. Therefore, once the installation of commissioning will not need maintenance.
3. No adjustment: Because the detection of tuning fork limit switch is not affected by electric parameters and the density of measured medium, so no matter what kind of liquid measurement field calibration is not required.
4. Using the four wire transmitter integrated structure, no moving parts, simple maintenance.
5. Continuous online measurement of liquid density and temperature, without interruption of the process can be directly used in the production process control.
6. Five inches digit LCD display. Hd backlight,easy to observe data at the scene.
7.Temperature and density parameters can be displayed at the same time, for industry standard density conversion.
8.There are several different kinds of density of the touch liquid material, according to the site to select the material to meet the needs of different.
9. Excellent overvoltage protection structure, superior temperature stability,high polishing make medium away from fork body.
10. Fixed sensor fork header design, factory calibration, convenient site configuration.
11. Easy to install and use,fork body of density meter contact the liquid to display the reading.
12. Simplified maintenance, no regular cleaning (viscosity of the medium to be cleaned regularly or down time).
13. Tuning fork type density meter calibration without standard reference source, no laboratory calibration, no process interrupt.
14. Special Functions of display header : One click to restore function is aim to use easily at the scene. One click adjust medium density function which is convenient for calibrate density value.
15. Intrinsically safe type and explosion proof type can be used for dangerous scene.
Application fields
1. Sugar manufacturing and wine-making industry:Squeeze juice, syrup, grape juice, etc. alcohol GL degree, ethane alcohol interface, etc.
2. Dairy industry: Condensed milk, lactose, cheese, dry cheese, lactic acid, etc.
3. Architecture&mining: concrete slurry slurry mixing, coal (washed coal), potash, brine, phosphate, compound, limestone, copper, etc.
4. Petroleum refining:Lubricating oil, aromatic agent, fuel oil, vegetable oil, etc.
5. Food-processing:Tomato juice, fruit juice, vegetable oil, starch milk, jam, etc.
6. Pulp and paper industry:
7. Black paste, green pulp, pulp washing, evaporator, white pulp, caustic, etc.
8. Chemical industry:Urea, cleaning agent, polymer, ethylene glycol, sodium chloride, sodium hydroxide, etc.
9. Petrochemical industry:Liquefied natural gas, oil and gas washing, kerosene, lubricating oil, oil / water interface, etc.
10. Beverage processing:Beer, soft drinks, wine, instant coffee, malt, etc.
11. Pharmacy:Concentrate, fermentation, evaporation, mixing ratio, etc.
12. Environmental protection:Desulphurization, denitration , etc.
Technical Parameters
MAY-2001 Tuning Fork Liquid Density Concentration Online Monitoring Tester
| Measurement range | Concentration %: 0.0-100.0% |
| Density concentration: 0-2.0 g/cm³ | |
| Baume: 0-100 °Bé | |
| Temperature: -10.0-110.0 ºC | |
| Accuracy | Concentration %: 0.1% |
| Density concentration: 0.0001 g/cm³ | |
| Baume: 0.01 °Bé | |
| Temperature: 0.1 ºC | |
| Reading frequency | 2 times/s |
| Medium viscosity | Low than 1000CPS (Customizable high-viscosity liquid tester) |
| Medium temperature | -10.0 ~ 110.0ºC (higher temperature can be customized) |
| Sensor explosion-proof grade | Ex d IIC T6Gb |
| Protection level | IP67 for liquid measuring part of sensor |
| Sensor length | 130mm (other lengths can be customized) |
| Sensor materials | 316L/ Hastelloy C276/ titanium/ Tetrafluoro / Zirconia |
| Power supply | DC 24V, 2A |
| Intelligent signal output | RS232 or 485 ModbusRTU teaching word quantity, switch quantity, 4-20mA analog quantity |
| Installation method | Optional DN50 flange or 1.5 inch clamp |
| Standard configuration | Central display controller, tuning fork sensor |
Product advantages and disadvantages
Advantages:
Simple installation, plug and play, free maintenance. It can be measured the mixed medium density which have solid or bubbles.
Disadvantages:
The density meter is not good at measuring easy crystallization or scale medium. You can choose another density meter which is Differential pressure type intelligent online density meter.
