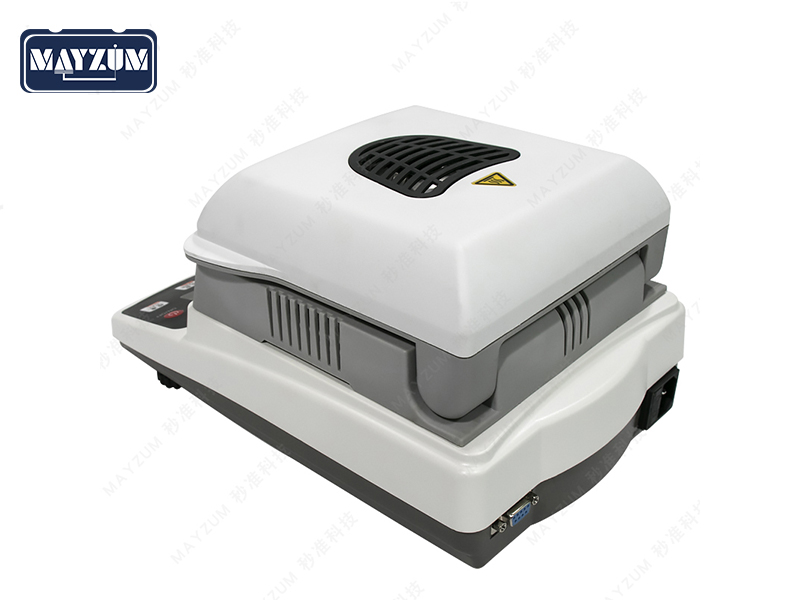

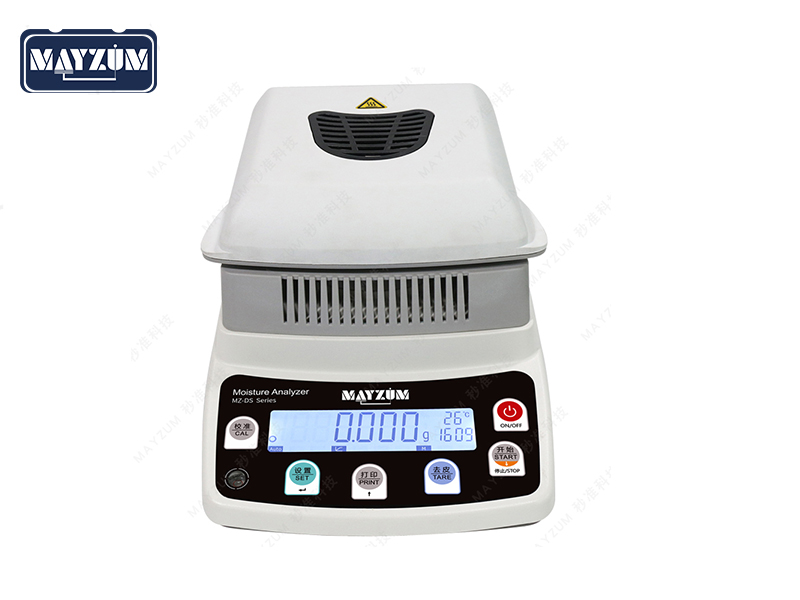

MZ-DS54 0.0001g High Precision Halogen Moisture Analyzer/Moisture Meter/Moisture Content Tester

MZ-DS Series Halogen Moisture Analyzer

Principle description:

MAYZUM has functions such as automatic weighing, automatic accuracy, and diversified drying methods. The MAMYZUM fast moisture meter adopts the principle of thermal weight loss. While measuring the weight of the sample, the heating unit and the moisture evaporation channel quickly dry the sample. During the drying process, the moisture The instrument continuously measures and instantly displays the loss of moisture content% of the sample, and can quickly determine the moisture content (solid content) of the sample within a few minutes, thereby ensuring a fast response time for quality control and process control. Whether in a busy laboratory or in a harsh production environment, the compact design saves space, and the sturdy structure ensures a long service life of the instrument. Miaozhunke is committed to providing enterprise users with precise moisture, density, concentration measuring instruments and complete solutions. The precise moisture results can effectively guide users' production, improve product quality, and reduce enterprise costs.

Application:

Plastics, grain, feed, powder, batteries, paper, food (dehydrated vegetables, meat, noodles, flour, biscuits, pies, aquatic processing), tea, beverages, grains, chemical raw materials, pharmaceuticals, textile raw materials... etc. , To test the free moisture contained in the sample

Features:

1. Three measurement modes are fast: automatic, timing and manual measurement;

2. Built-in 10 groups of measurement programs: chemical raw materials, food, pharmaceutical industries... and other 10 measurement modes can be switched with one button, the test time and temperature in each mode can be customized, and the measurement process does not require cumbersome settings. It is simple, efficient and convenient to test when the device is turned on. (If there are special needs, the factory can be set according to customer needs before shipping, and the user can directly test after receiving the goods)

3. The 110mm large-diameter measuring disc is convenient for sample placement, heating more uniformly, and meets the needs of more users.

4. The special ring heating light source is used to make the sample heat more uniformly, dry faster, have stronger penetrating ability, and measure more accurately;

5. Customized imported integrated weighing sensor to solve weighing problems such as temperature drift and time drift, and improve measurement accuracy;

6. The temperature control system uses high-precision temperature control components (temperature drift less than 1%) to ensure the uniformity and controllability of the temperature during the test;

7. There are no consumables in the use process, and the thickened aluminum sample plate is used, which can be reused, energy saving and environmental protection;

8. For samples that are inconvenient to clean, disposable tin paper trays can be used, which is economical and practical;

9. Instead of the national standard oven method, it has a wide range of uses and is suitable for moisture determination in various industries;

10. Fully automatic measurement, no need to take care of the measurement process, and alarm when the measurement is completed;

11. The data display is diversified, time, real-time temperature, weight, moisture, solid content, etc., all at a glance; optional printer can print data report quickly;

12. No need to install and debug, no training, no tedious process, just unpack it and use it

13. A complete after-sales service system to solve customer feedback problems promptly and quickly.

Test steps:

1. Open the lid and place the sample to be tested in the measuring pan;

2. Close the lid and click the "Start/START" button. After the test is completed, it will automatically alarm and display the moisture value.

Specification parameter table
