Online liquid density meter, Online concentration meter, Hydrometer, Brix meter, Baume meter
Special reminder

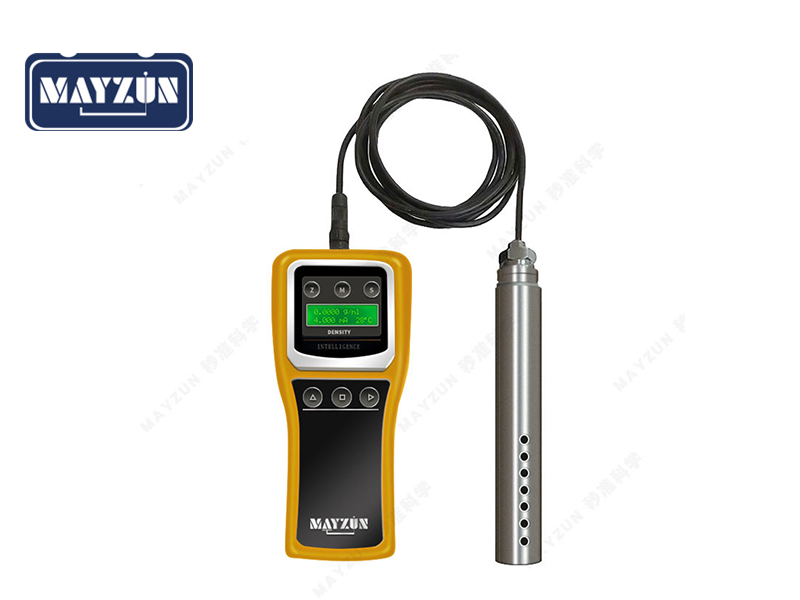

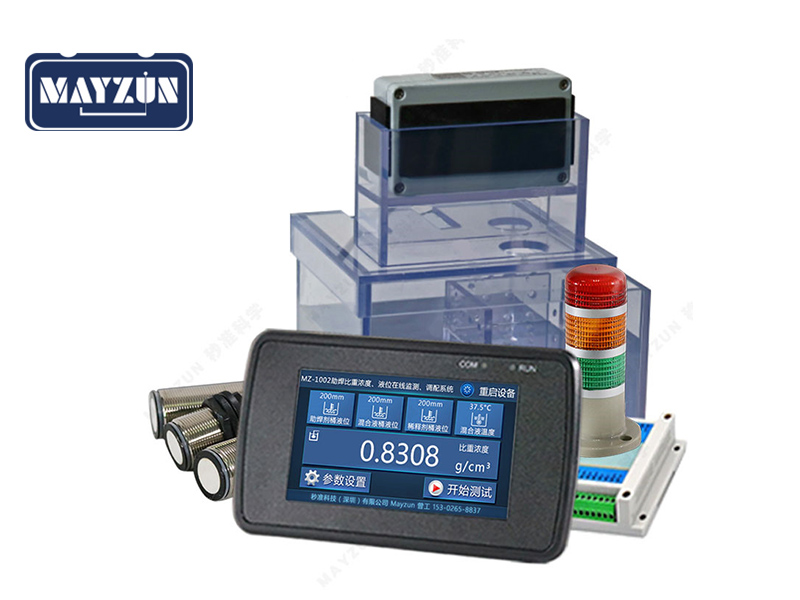

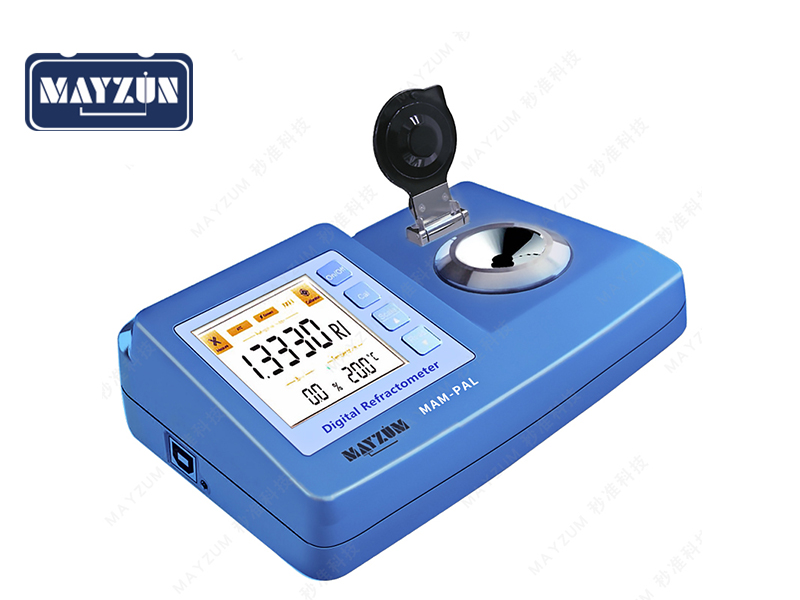

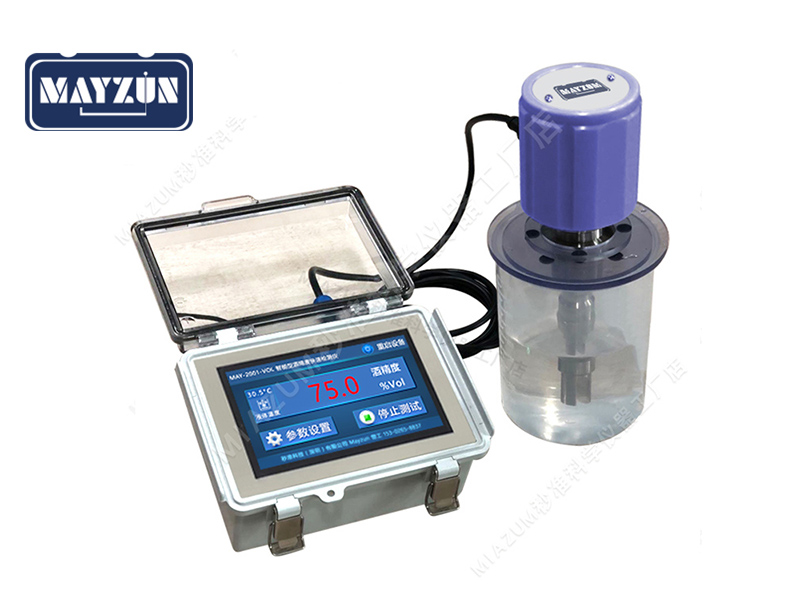

Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment. Please consult the sales staff for details. (E-mail: qlyiqi@126.com Mob/Whatsapp: 86-13928470327)
Principle
Sound waves produce different vibration frequencies in liquid media with different specific gravity concentrations. The vibration frequency is detected by a piezoelectric crystal, and then converted into a specific gravity concentration digital signal by a microprocessor through a phase shifting and amplifying circuit; under normal circumstances , The specific gravity and concentration of liquids of different concentrations will show a certain mathematical relationship. According to the Lagrangian interpolation algorithm (y=E1x3+E2x2+E3x+E4, x is the specific gravity, y is the percentage concentration, E1, E2, E3 , E4 is the concentration conversion coefficient) to convert the corresponding concentration value under a certain specific gravity value.
Specifications
Online liquid density meter, Online concentration meter, Hydrometer, Brix meter, Baume meter
Brand | MAYZUM | |

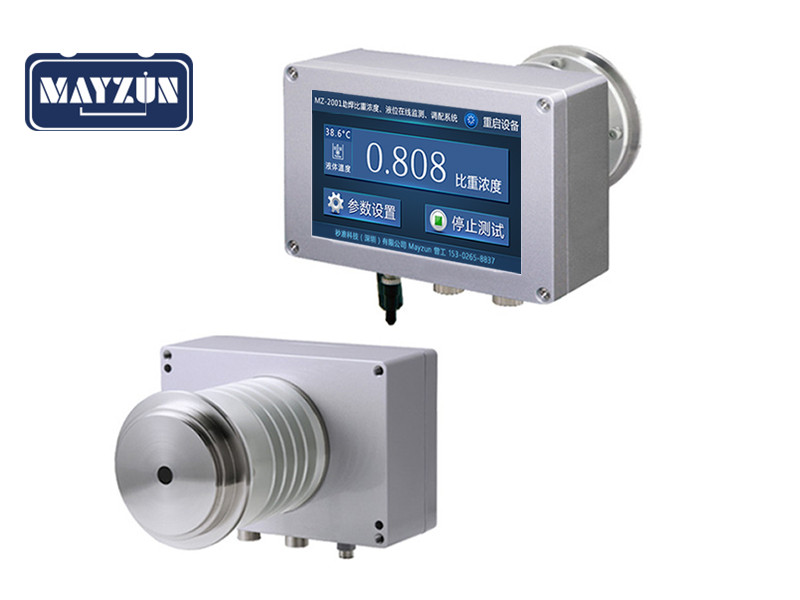

Model | MZ-2001(Tuning Fork) | MZ-1001(buoyancy) |
Measuring range | Liquid level range: 0-1500mm | Liquid level range: 0-1500mm |
Specific gravity range: 0~2.2g/cm³ | Specific gravity range: 0~2.2g/cm³ | |
Concentration range: 0.1 ~ 100.0% | Concentration range: 0.1 ~100.0% | |
Accuracy | Liquid level: 0.1mm | Liquid level accuracy: 0.1mm |
Specific gravity: 0.0001g/cm³ | Specific gravity: 0.001g/cm³ | |
Concentration range: 0.01 % | Concentration: 0.1 % | |
Repeatability accuracy | Liquid level: ±0.1mm | Liquid level: ±0.1mm |
Specific gravity: ±0.005g/cm³ | Specific gravity: ±0.01g/cm³ | |
Concentration range: ±0.1~1% | Concentration range: ±1% | |
Reading frequency | 2 times/S（Read the result within 0.5 seconds） | 2 times/S（Read the result within 0.5 seconds） |
Degree of protection | IP67 for the liquid measuring part of the sensor | NO |
Sensor explosion-proof grade | Ex d IIC T6Gb | NO |
Sensor material | Hastelloy (more corrosion-resistant than 316L stainless steel) | 304 stainless steel/Teflon |
Medium temperature | 0.0- 120.0℃ | 0.0 - 160.0℃ |
Environment temperature | -40-85℃ | |
Relative humidity | Within 80% | |
Output signal | The default RS232, RS485 Modbus RTU digital quantity, switch quantity, 4~20mA and other outputs can be selected | |
Power supply | DC 24V，2A | |
Standard configuration | Central display controller; Sensor | |
Optional configuration | Customized according to user needs | |
