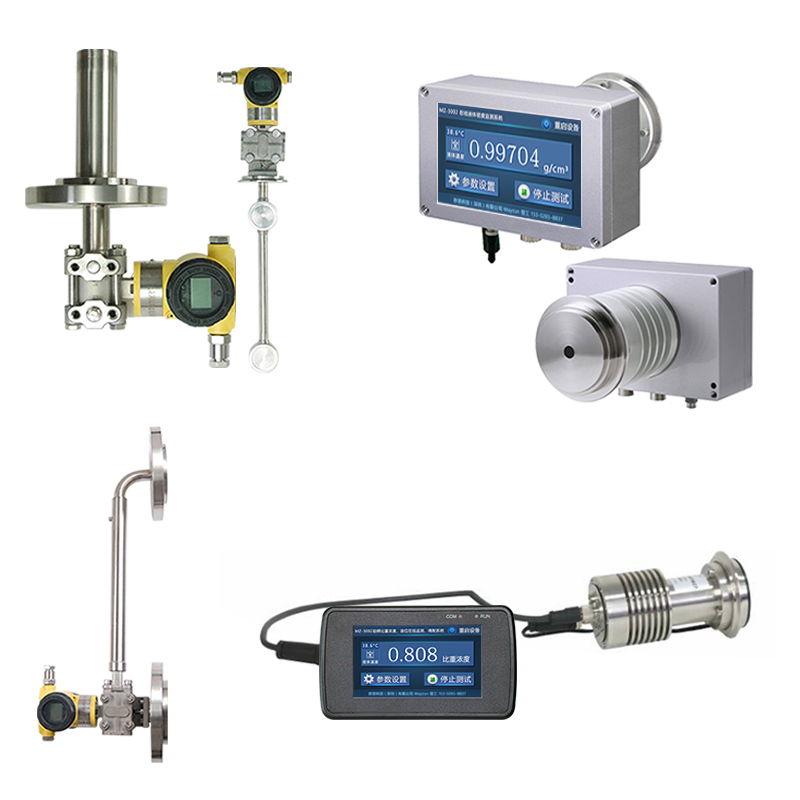

​MAY-4001 Differential Pressure Online Liquid Density Concentration Meter

MAY-4001 Differential Pressure Online Liquid Density Concentration Meter

Special reminder

Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant and high-temperature, complete certificates. Support non-standard customization, and free installation drawings can be provided according to the on-site environment requirements provided by the customer. Please consult the sales staff for details. (E-mail: qlyiqi@126.com Mob/Whatsapp: 86-13928470327)

Principle

MAY-4001 online density meter (also called online density transmitter) is a device for continuous online measurement of the concentration and density of liquids, which can be directly used in industrial production processes. The density meter uses advanced technology, including: a capacitive differential pressure sensor and a pair of pressure repeaters connected to it and inserted into the production process. There is a temperature sensor between the two pressure repeaters to compensate for the temperature change of the process liquid. The intelligent online density meter is a two-wire density transmitter, which is mainly used for industrial process control. The online density meter generates a corresponding 4-20mA signal according to the concentration and density. It can be remotely calibrated and monitored through digital communication as shown in Figure 1. It is mainly used in chemical urea, detergent, ethylene glycol, industrial ammonia, acid-base and polymer density testing. It can also be used in mining mud, brine, potash, lubricating oil, desulfurization slurry, biopharmaceutical and other industries.

Features

1. The online density meter is suitable for flowing or static liquids, and suitable for pipeline and tank installation.

2. Two-wire transmitter with integrated structure, no moving parts, simple maintenance.

3. Continuous online measurement of liquid density and temperature without process interruption. It can be directly used for production process control.

4. Double four-digit LCD display.

5. The two parameters of temperature and density can be displayed at the same time, which is convenient for industry standard density conversion

6. The density meter has several different liquid contact materials.

7. Easy to install and use, the reading can be displayed when the liquid is inserted.

8. Simplify maintenance, no need for regular cleaning.

9. The online density meter calibration does not require a standard reference source, laboratory calibration, and process interruption.

10. Intrinsically safe type can be used in hazardous sites. Hygienic type can be installed in food production sites.

Technical index

1. 4~20mA current output. Option to add digital signal (HART protocol)

2. 16~30VDC power supply. 24VDC is recommended.

3. Density range: 0～2g/cm3; 0～3g/cm3

4. Accuracy: 0.001 g/cm3

5. Resolution: 0.0005 g/cm3

6. Temperature range: 0～100℃

7. Temperature accuracy: 0.2℃

8. Ambient temperature: -10～60℃

9. Humidity range: 0~90%

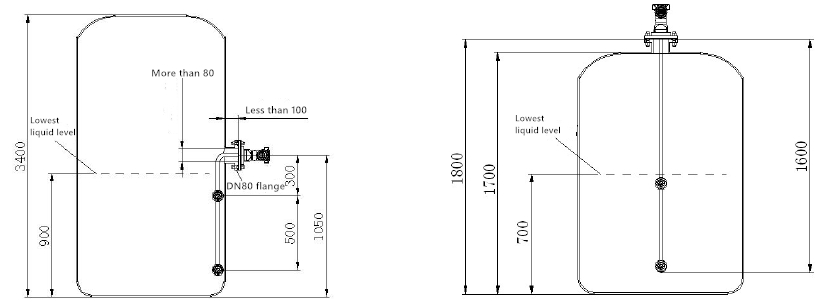

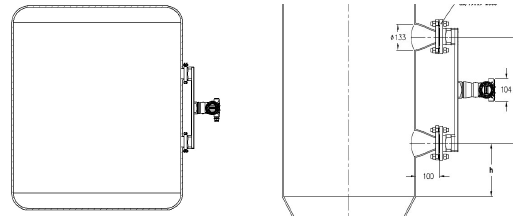

Installation type

There are three types of intelligent online densitometers in structure design, namely top-mounted type and side-mounted type, and pipeline type installation. The top installation type is suitable for tank installation, and the side installation type is suitable for pipeline installation to meet the density measurement requirements under different working conditions.
