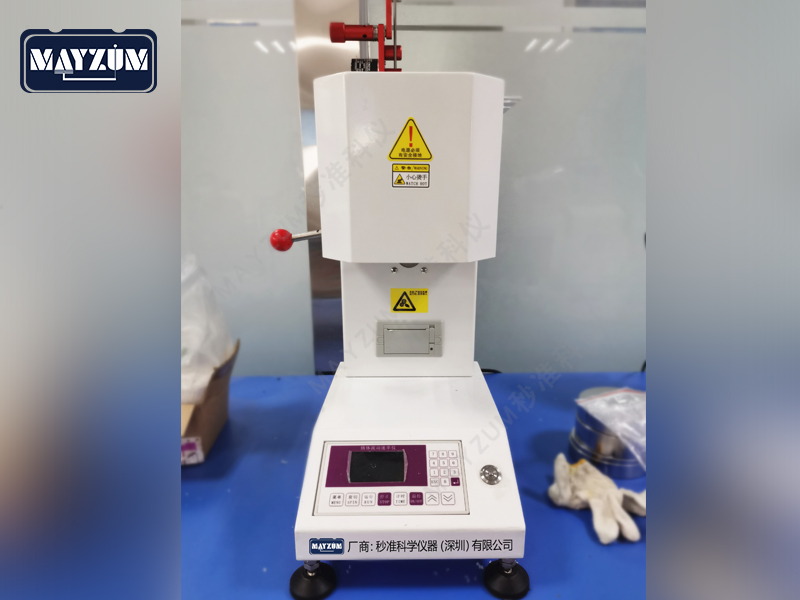

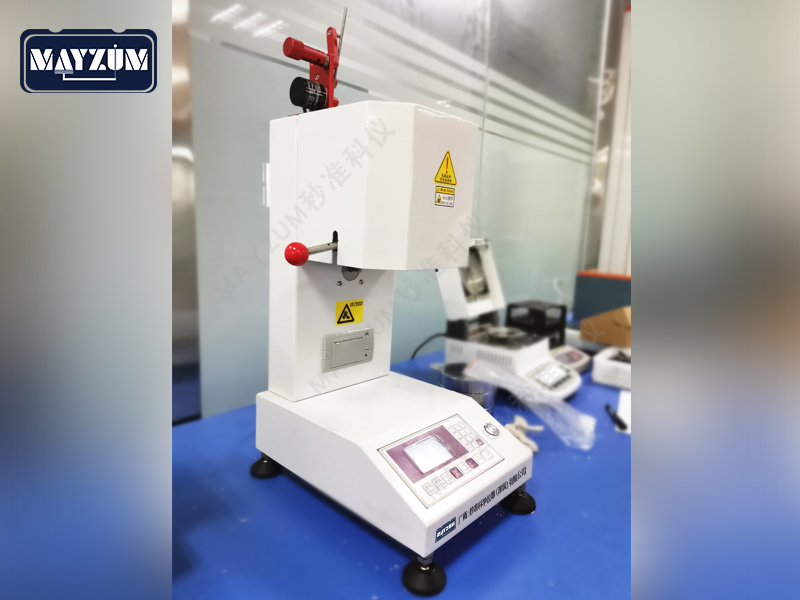

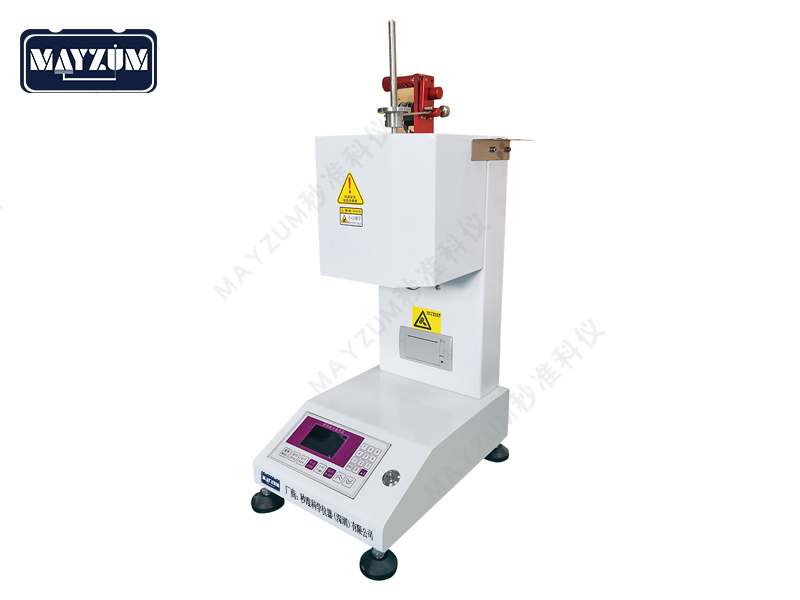

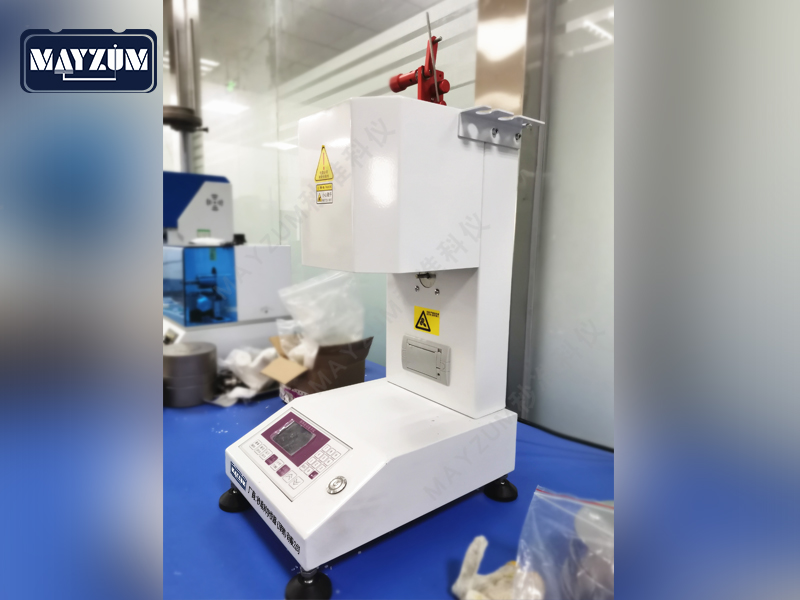

Mass And Volume Method Melt Index Instrument

Multifunctional Melt Index Meter ( volume method and mass method)

Model: MAM-AJ2

Introduction:

The melt index meter meets the standard requirements of GB/T3682-2000. The main parameters of the melt index meter also meet the requirements of ISO1133-97, ASTM1238, JIS and other standards. It can be used for polyethylene, polypropylene, polystyrene, ABS, poly Measure the melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plastic materials such as amide, fiber resin, acrylic ester, polyoxymethylene, fluoroplastics, polycarbonate, etc., and are widely used in plastic production , Plastic products, petrochemical industries and related colleges, research institutes and commodity inspection departments.

Features:

1. High-precision Chinese and English color controllers, specially customized membrane buttons, have unparalleled advantages in control accuracy and service life

2. The manual automatic cutting is integrated control, accurate to 0.1s, and the cutting time and cutting times can be set arbitrarily.



3. Built-in micro printer, can print test data

4. Dual temperature control system, using dual imported heating coils, dual imported PT100 platinum resistance sensors, the upper and lower sections of the independent temperature control, improve the test accuracy and temperature stability.

5. Add displacement sensor to test MVR (volume method) with an accuracy of 0.001mm.

6. It can be connected to the computer via USB, and the test conditions can be set on the computer through the software, and the data can be printed and stored (optional).

Test method:

Mass method, volume method (MFR, MVR)

Display method:

Chinese and English color LCD display

Technical Parameters:

  Temperature range: 0℃-450℃

  Temperature fluctuation: ±0.2℃

  Temperature uniformity: ±1℃

  Temperature display resolution: 0.1℃

  Time display resolution: 0.1S

  Barrel diameter: Φ2.095±0.005mm

  Length of discharge port: 8.000±0.025mm

  Diameter of charging cylinder: Φ9.550±0.025mm

  Weight accuracy: ±0.5%

  Output mode: micro automatic printout

  Cutting method: manual and automatic cutting

  Test load: a total of 8 levels, 8 sets of weights

  Power supply voltage: AC220V±10% 50HZ
