MAY-2001-vol Intelligent Portable Alcohol Tester/Ethanol Concentration Meter

Intelligent Portable Alcohol Tester/Ethanol Concentration Meter

Our company develops and produces online alcohol tester, online density meter, online concentration meter, online PH meter, online refractometer, online Baume meter, online sugar meter, etc., and supports non-standard customization. We provide automation according to the customer's on-site environment Solutions, welcome to inquire!

Introduction

Alcohol is also called ethanol. Ethanol is a flammable, volatile, colorless and transparent liquid at room temperature and pressure. It has low toxicity and cannot be consumed directly as a pure liquid; it has a special fragrance and is slightly irritating; it is slightly sweet and accompanied by irritation. The spicy taste. Flammable, miscible with ether, methanol, acetone and most other organic solvents, relative density (d15.56) 0.816. Ethanol has a wide range of uses. Ethanol can be used to make acetic acid, beverages, flavors, dyes, fuels, etc. It is widely used in national defense chemical industry, medical and health, food industry, industrial and agricultural production.

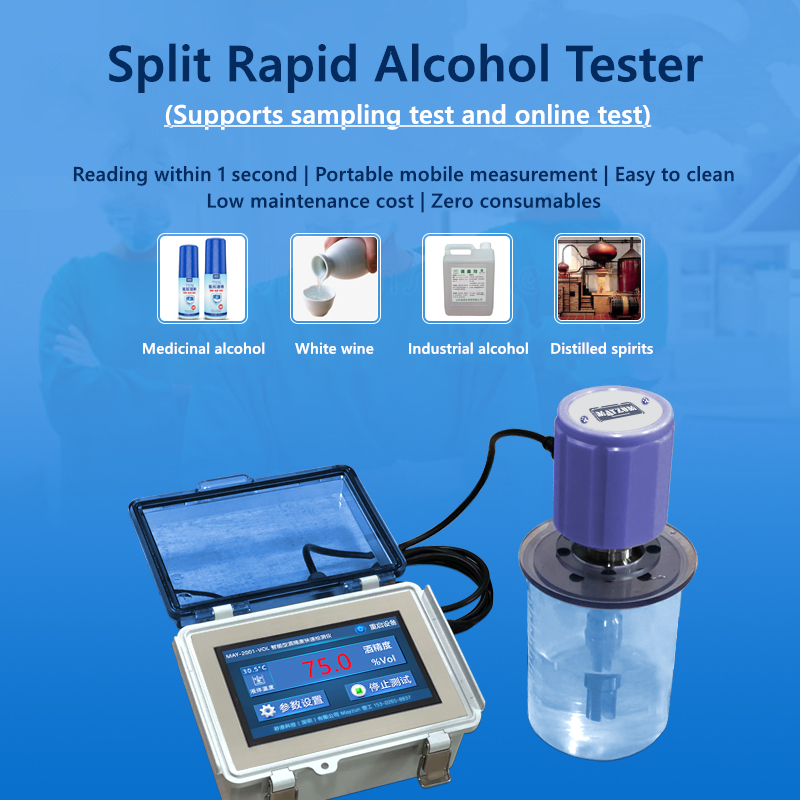

MAYZUM MAY-2001-Vol intelligent online alcohol detector can help users quickly detect the alcohol content of liquor, industrial alcohol, and ethanol without any auxiliary reagents. The instrument has the advantages of flexible installation, fast measurement, and convenient reading. It can be installed in the pipeline. , Reaction kettle, tank and other working conditions, support online and mobile sampling two measurement methods, whether you are on the production line or in the laboratory, this instrument can easily be competent.

Principle

When the instrument is working, the built-in motor generates high-frequency vibrations. The vibration frequencies generated in liquid media with different alcohol levels are different. The vibration frequency is detected by a piezoelectric crystal, and the phase shift and amplification circuit is used by the microprocessor. Converted into a digital signal of specific gravity concentration; through the built-in alcohol database of the meter (integrated with more than 300,000 alcohol data tables), combined with our self-developed fast interpolation table look-up algorithm, high efficiency, high precision, and real-time calculation of liquor , The alcohol content of industrial alcohol (the volume concentration and mass concentration can be detected at the same time, and the mass concentration is in the blending wine industry).

Application

Brewery, industrial alcohol, no-wash disinfectant, alcohol spray... etc.

Main feature

1. 4.3-inch full-color high-definition display, touch-control operation, simple and clear parameter setting;

2. Using PPEK anti-corrosion and dust-proof protective shell, long-term use will not be interfered by environmental humidity and impurities;

3. The alcohol content measurement range is 0.1~100.0%, and the accuracy is 0.1%;

4. Real-time monitoring of the temperature value, automatic temperature compensation, no need to use a thermometer, to avoid measurement errors caused by temperature changes;

5. There is no need for cumbersome table checking, automatic reading when contacting liquid, automatic display of alcohol value and temperature value within 1 second;

6. Suitable for fluids or static liquids, support pipeline installation online monitoring/sampling handheld portable measurement free switching;

7. The factory has been calibrated according to the requirements of the national standard, and there is no need to re-calibrate for long-term use;

8. All parts in contact with liquid are Hastelloy (more corrosion-resistant than 316 stainless steel), corrosion-resistant, acid-base resistant;

9. A variety of output signals are optional, the default RS232, RS485 Modbus RTU digital quantity, switch quantity, 4-20mA and other outputs can be selected.

Technical Parameters

Detailed images
